63 99 002 Replace halogen bulb for left high beam headlight
WARNING:
Follow the SAFETY INSTRUCTIONS FOR HANDLING BULBS/LIGHT SOURCES (EXTERIOR LIGHTS) .
Turn protective cap (1) counterclockwise and remove upwards.
IMPORTANT:
Risk of damage due to moisture penetration!
Installation note:
Seal in protective cap (1) must not be missing or damaged.
Replace protective cap (1) if necessary.
Comply with INSTRUCTIONS FOR REPLACING THE PROTECTIVE CAP .
Protective cap (1) must be correctly engaged.

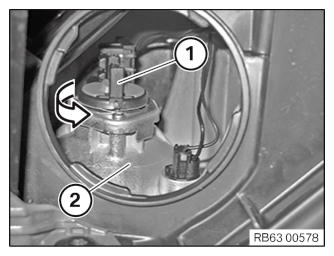

Turn bulb holder (1) in direction of arrow and pull rearward out of headlight (2).
Installation note:
Make sure bulb holder (1) is correctly fitted in headlight (2).
Installation note:

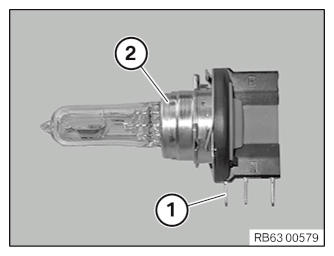

Contact pin (1) on bulb holder (2) must not be damaged.
Note BULB TYPE .
