63 31 182 Replacing LED for front inside door opener (left or right)

Necessary preliminary tasks:

NOTE: Work shown on the F20 by way of example, deviations in detail are possible in other models.

Release catches (1).

Remove fibre-optic conductor (2) in direction of arrow out from door opener (3).

Installation note:

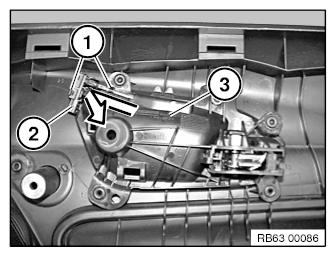

Fig 1: Removing Fibre-Optic Conductor From Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure that the fibre-optic conductor (2) latches correctly in door opener (3).

Latch mechanisms (1) must not be damaged or missing.
