63 31 080 Removing and installing/replacing luggage compartment light

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

Lever out the luggage compartment light (1) from the luggage compartment trim panel (2).

Disconnect associated plug connection and remove luggage compartment light (1).

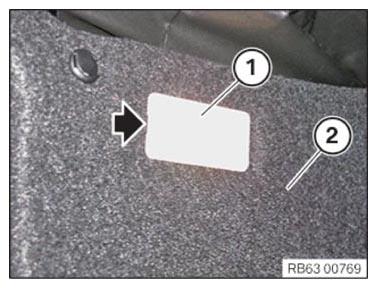

Fig 1: Locating Luggage Compartment Light

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, REMOUNT BULB , noting BULB TYPE
Luggage compartment light in LED technology must be completely replaced!
