63 11 560 Removing and installing (replacing) the headlight driver module

WARNING: Version with xenon lighting system: Danger to life due to high voltage! Disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition device, control unit and bulb) may only be carried out by qualified personnel.

IMPORTANT: Read and comply with INFORMATION ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE !

Necessary preliminary tasks:

REMOVE HEADLIGHT

Release screws (1).

Pull headlight driver module (2) out of the headlight.

Unlock and disconnect associated connector.

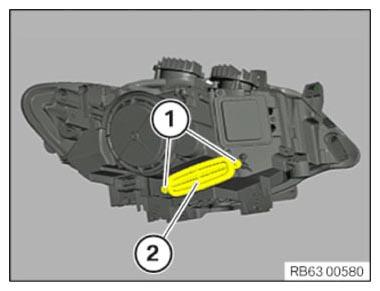

Fig 1: Identifying Headlight Driver Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

During installation, make sure gasket (1) is correctly positioned.

Gasket (1) must not be damaged and must be installed free from grease.

Latch mechanisms (2) must not be damaged or missing.

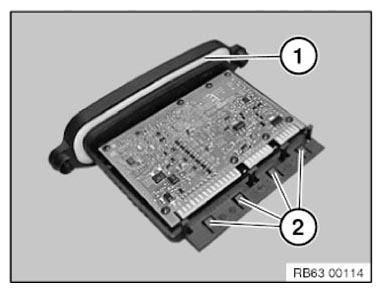

Fig 2: Identifying Gasket And Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Teach in headlight driver module (1) via vehicle diagnosis.

Service functions
Body
Lights
Initialize the headlight driver module and teach in LEDs in headlight
Code the FEM (if FEM is installed in the vehicle)
