63 14 120 Removing and installing or replacing rear reflector

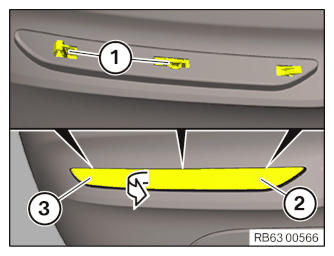

Release the rear reflector (2) on the inside of the bumper panel from latch mechanisms (1).

Feed rear reflector (2) in direction of arrow out of bumper panel (3).

Fig 1: Feeding Rear Reflector Of Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

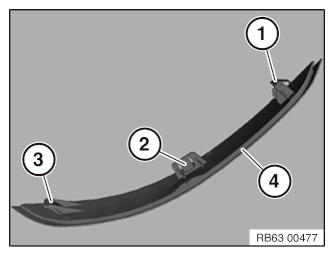

The clip (1), catch (2) and guide (3) on the rear reflector (4) must not be damaged or missing.

Fig 2: Identifying Clip, Catch And Guide On Rear Reflector

Courtesy of BMW OF NORTH AMERICA, INC.
