63 25 004 Replacing the additional brake light

Necessary preliminary tasks:

NOTE: Schematic diagram shows additional brake light removed.

Unlock all locks (1) on additional brake light (2) in direction of arrow.

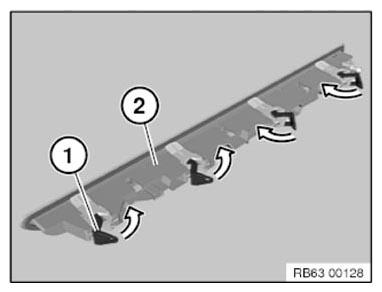

Fig 1: Removing Locks On Additional Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Additional brake light is fitted with gasket with double-sided adhesive and cannot be reused.

First press additional brake light (1) up out of the tailgate slightly and hold.

Unlock retaining lugs (2) beginning on one side.

At the same time press the additional brake light (1) out of the tailgate.

Fig 2: Identifying Additional Brake Light And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove additional brake light (2).

IMPORTANT: Risk of damage due to moisture penetration!
Where applicable, thoroughly remove gasket residue from the tailgate.

Fig 3: Identifying Additional Brake Light And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove protective film from gasket (1) on the new part.

Gaskets (1) and lock (2) must not be damaged or missing.

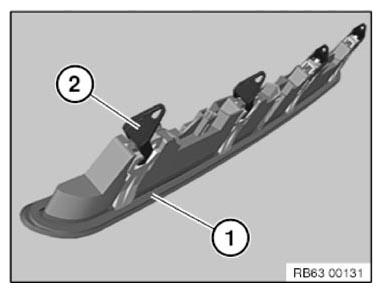

Fig 4: Identifying Additional Brake Light Gaskets And Lock

Courtesy of BMW OF NORTH AMERICA, INC.
