65 12 090 Remove and install/replace Active Sound Design control unit
IMPORTANT:
Read and comply with NOTES
on protection against electrostatic damage (ESD protection).
NOTE:
Comply with notes and notes on HANDLING OPTICAL FIBRES
.
Necessary preliminary tasks:
- Remove amplifier See 65 12 072 REMOVING AND INSTALLING/REPLACING AMPLIFIER (HI-FI SYSTEM/HARMAN KARDON) or 65 12 071 REMOVING AND INSTALLING OR REPLACING AMPLIFIER
Removal:

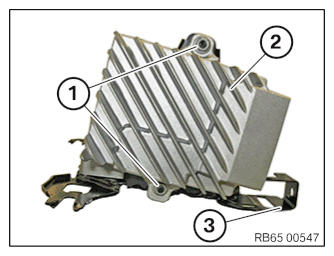

Unscrew nuts (1).
Remove Active Sound Design control unit (2) from holder (3).
Installation:
Correctly position Active Sound Design control unit (2) on the holder (3).
Tighten down nuts (1).
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
