66 33 140 Remove and install/replace ultrasonic sensor for rear left Parking Maneuvering Assistant

Necessary preliminary tasks:

Removal:

Unlock latch mechanisms (1).

Pull ultrasonic sensor (2) out of holder.

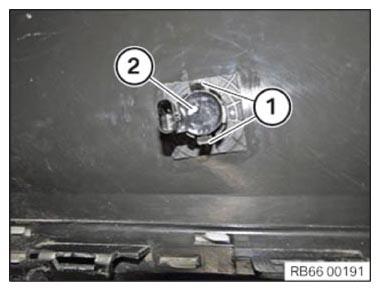

Fig 1: Identifying Ultrasonic Sensor And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Check rubber seal (1) is correctly seated on ultrasonic sensor (2)!
Check ultrasonic sensor (2) is correctly seated!

Fig 2: Identifying Rubber Seal And Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Latch ultrasonic sensor (2) into holder.

Latch mechanisms (1) must lock correctly.

Fig 3: Identifying Ultrasonic Sensor And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
