61 31 197 Removing and installing operating facility for center console (Manual)

Overview of Activities

Preprocesses

1. Detaching the gearshift lever cover

   Key processes

2. Removing the operating unit for the center console
3. Installing the operating unit for the center console

   Post processes

4. Installing the gearshift lever cover

Additional Information

General information

safety instructions

RISK OF DAMAGE

Scratches.

Tools and sharp-edged components can cause scratches.

• Protect working area.
• Handle tools and components carefully.

Preprocesses

1. Detaching the gearshift lever cover
   • Pull installation frame of gaiter at the sides upwards out of center console.

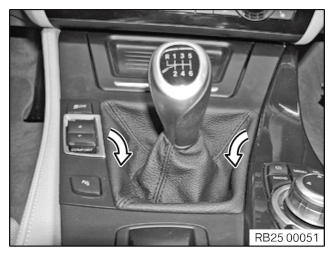

     Fig 1: Detaching Gearshift Lever Cover

     Courtesy of BMW OF NORTH AMERICA, INC.

   Key processes

2. Removing the operating unit for the center console
   • Adhere to following procedure:
     1. Reach under front section of operating unit for the center console (1).
     2. Press front latch mechanism in direction of arrow and simultaneously raise operating unit for the center console (1) towards top.
     3. Disconnect associated plug connection and remove operating unit for the center console (1).

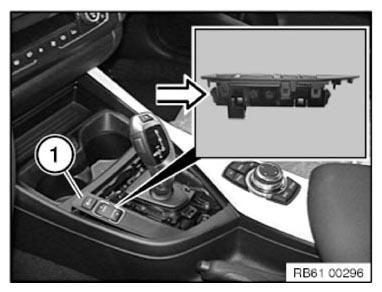

        Fig 2: Removing Center Console Operating Unit

        Courtesy of BMW OF NORTH AMERICA, INC.
3. Installing the operating unit for the center console
   • Clip in the operating unit for the center console.

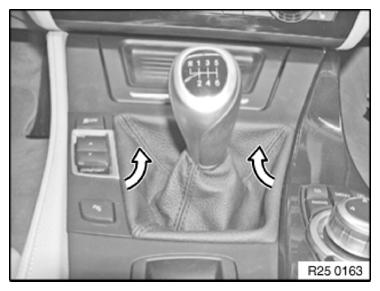

     Fig 3: Removing Center Console Operating Unit

     Courtesy of BMW OF NORTH AMERICA, INC.

   Post processes

4. Installing the gearshift lever cover
   • Press the installation frame of gaiter on the sides and position.
     Fig 4: Installing Gearshift Lever Cover

     Courtesy of BMW OF NORTH AMERICA, INC.
