67 31 510 Removing and installing/replacing drive unit for seat cushion tilt adjustment
Necessary preliminary tasks:
- Remove driver's or front passenger seat . See 52 13 001 REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE or 52 13 002 REMOVING AND INSTALLING FRONT SEAT, PASSENGER'S SIDE .
- Remove front seat cover . See 52 14 403 REPLACING SEAT COVER FOR FRONT PASSENGER SEAT (NORMAL/ELECTRICAL) or 52 14 402 REPLACING SEAT COVER FOR DRIVER'S SEAT (NORMAL/ELECTRIC) .
Release screws (1).
Remove cushion shell (2).
Detach spring (1) at seat frame (2).
Remove fuse (1) from shaft (2).
Unscrew nuts (1).
Pull drive with transmission (3) out of seat frame (2) and remove.

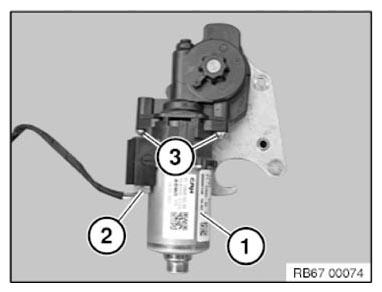

Unfasten plug connection (2) and disconnect.
Release screws (3).
Tightening torque: 67 31 1AZ .
Remove drive unit for seat cushion tilt adjustment (1).
NOTE:
Carry out a function check.
Replacement:
INITIALIZE seat height adjustment drive unit.
