51 24 130 Removing and installing/replacing striker for tailgate lock

Necessary preliminary tasks:

• Remove TOP COVER FROM TAIL PANEL

Release bolts (1) and remove striker (2).

Tightening torque: 51 24 2AZ .

Installation note:

Adjust REAR LID LOCK .

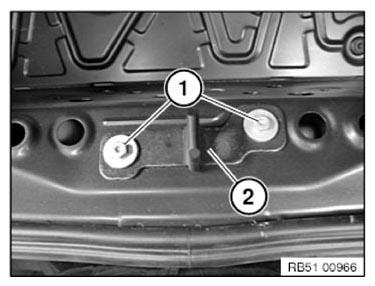

Fig 1: Striker And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
