51 13 316 Removing and installing or replacing trim strip on gutter strip at left or right

Removal:

Pull out gasket (1) from trim strip.

Undo screws (2) and remove trim strip.

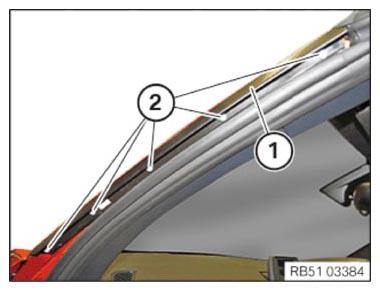

Fig 1: Trim Strip Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trim strip and tighten screws (2).

Feed in gasket in trim strip (1).

Fig 2: Trim Strip Screws

Courtesy of BMW OF NORTH AMERICA, INC.
