51 12 460 Replacing rear bumper panel trim strip

Necessary preliminary tasks:

• Remove REAR BUMPER PANEL

Release all latch mechanisms on the inside of the bumper panel.

Remove trim strip from bumper panel.

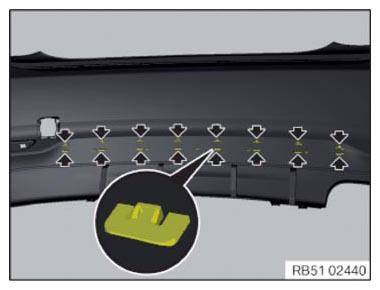

Fig 1: Latch Mechanisms On Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.
