51 12 050 Removing and installing/replacing support for rear bumper panel

Necessary preliminary tasks:

• Remove BUMPER PANEL

Unscrew nuts (1).

Tightening torque: 51 12 1AZ .

Remove support (2).

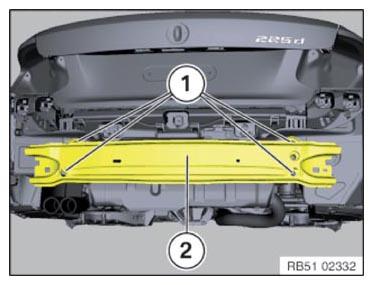

Fig 1: Rear Bumper Panel Support And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
