51 16 355 Removing and installing/replacing driver's side fold-down compartment

Special tools required:

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Open fold-down compartment (1).

Detach fold-down compartment (1) from clips (2) with special tool 00 9 325 and remove in direction of arrow.

Installation note:

Clamps (2) on fold-down compartment (1) must not be damaged or missing.

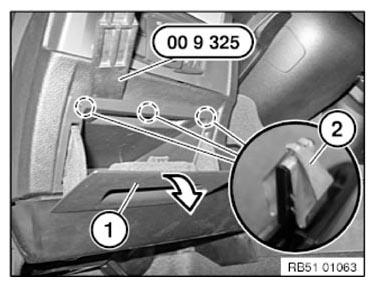

Fig 1: Detaching Fold-Down Compartment From Clips With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps (1) on fold-down compartment (2) must not be damaged or missing.

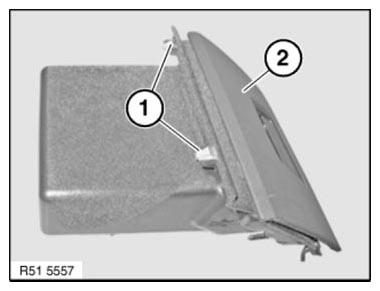

Fig 2: Clamps On Fold-Down Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
