51 45 380 Removing and installing decorative strip on right dashboard

Special tools required:

NOTE: When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Carefully unclamp decorative strip (1) with special tool 00 9 325 at marked points.

Remove decorative strip (1) with fresh air grille.

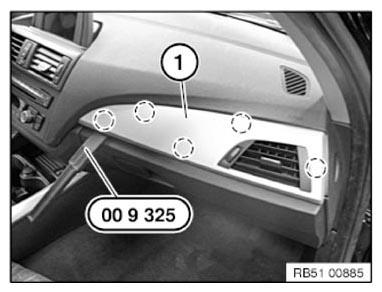

Fig 1: Removing Decorative Strip With Fresh Air Grille
G10142609Courtesy of BMW OF NORTH AMERICA, INC.
