51 45 184 Remove and install tailgate trim

Overview of Activities

Key processes

1. Removing the trim panel for pedal mechanism
2. Installing the trim panel for the pedal mechanism

Additional Information

Overview of Tightening Torques

General information

Key processes

1. Removing the trim panel for pedal mechanism

   Loosen screws 1.

   Unclip trim panel for pedal mechanism.

   Slightly lower the trim panel for pedal mechanism and disconnect the plug connections behind it.

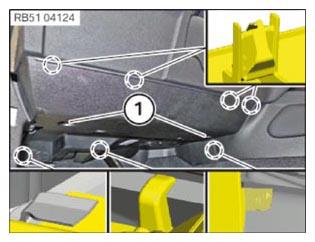

   Fig 1: Removing Pedal Mechanism Trim Panel

   Courtesy of BMW OF NORTH AMERICA, INC.
2. Installing the trim panel for the pedal mechanism

   Check

   • Check the clamps 1 and guides 2 for damage.

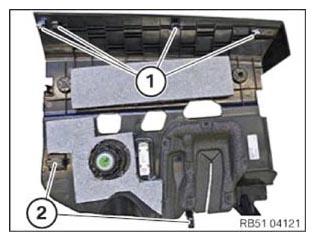

     Fig 2: Installing Pedal Mechanism Trim Panel

     Courtesy of BMW OF NORTH AMERICA, INC.

   desired state

   • No cracks or fractures.

   Result

   • Clamps 1 or guides 2 are damaged.

   Measure

   • Renew the clamps or the pedal mechanism trim panel.
   • Connect connector.
   • Feed in trim panel for the pedal mechanism in the area of the bulkhead and in the area of the center console into the guides.
   • Install the trim panel for the pedal mechanism and press until the clips engage.
   • Tighten the screws 1.
   TIGHTENING TORQUES SPECIFICATIONS



   Trim panel for the pedal mechanism on the support for the instrument panel
   	4.6 Nm

   Fig 3: Removing Pedal Mechanism Trim Panel

   Courtesy of BMW OF NORTH AMERICA, INC.
