51 23 110 Removing and installing/replacing left engine compartment lid lock

Necessary preliminary Work (F23 and F33 only):

• Remove left FRONT-END STRUT

Detach plug connection (1) by twisting from catch carrier.

Unfasten plug connection (1) and disconnect.

Release screws (2) and feed out engine compartment lid lock (3).

Tightening torque: 51 23 1AZ .

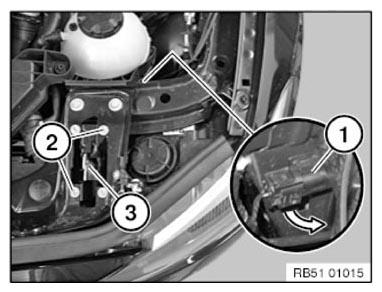

Fig 1: Detaching Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip grommet (1).

Unhook Bowden cable (2) from engine compartment lid lock (3).

Fig 2: Removing Bowden Cable From Engine Compartment Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.
