51 41... Removing and installing/replacing speaker cover on front left or right door trim panel

Special tools required:

Detach speaker cover (1) with special tool 00 9 327 from the bottom starting at latch mechanisms (2).

Feed out speaker cover (1) downwards out of guide (3).

Installation note:

In a first step, feed in the speaker cover (1) with the guide (3) and then clip into the latch mechanisms (2).

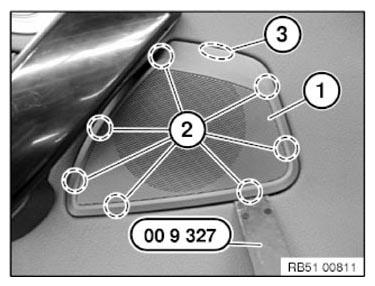

Fig 1: Detaching Speaker Cover Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide (1) and latch mechanisms (2) must not be damaged.

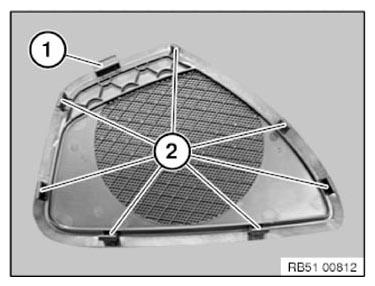

Fig 2: Guide And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.
