51 11 181 Removing and installing/replacing finisher rod on ornamental grille for bumper panel

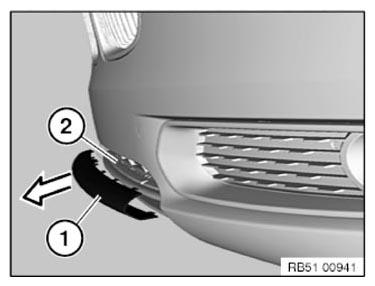

Remove cover (1) with latch mechanisms from bumper panel (2) in direction of arrow.

Fig 1: Removing Cover With Latch Mechanisms From Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

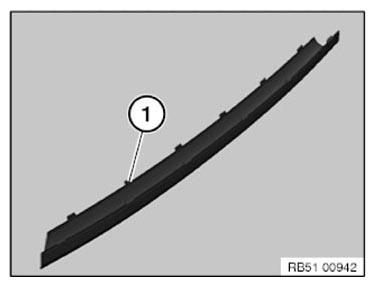

No catches (1) are permitted to be damaged or missing.

Fig 2: Catches

Courtesy of BMW OF NORTH AMERICA, INC.
