64 11.. Overview of actuator drives on heater/air conditioner

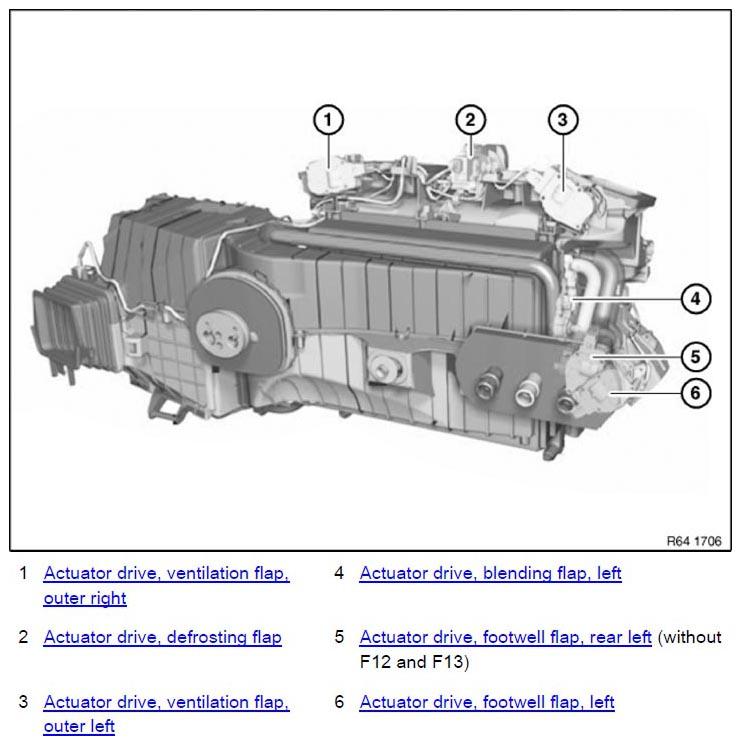

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The High equipment specification heater/air conditioner is pictured!

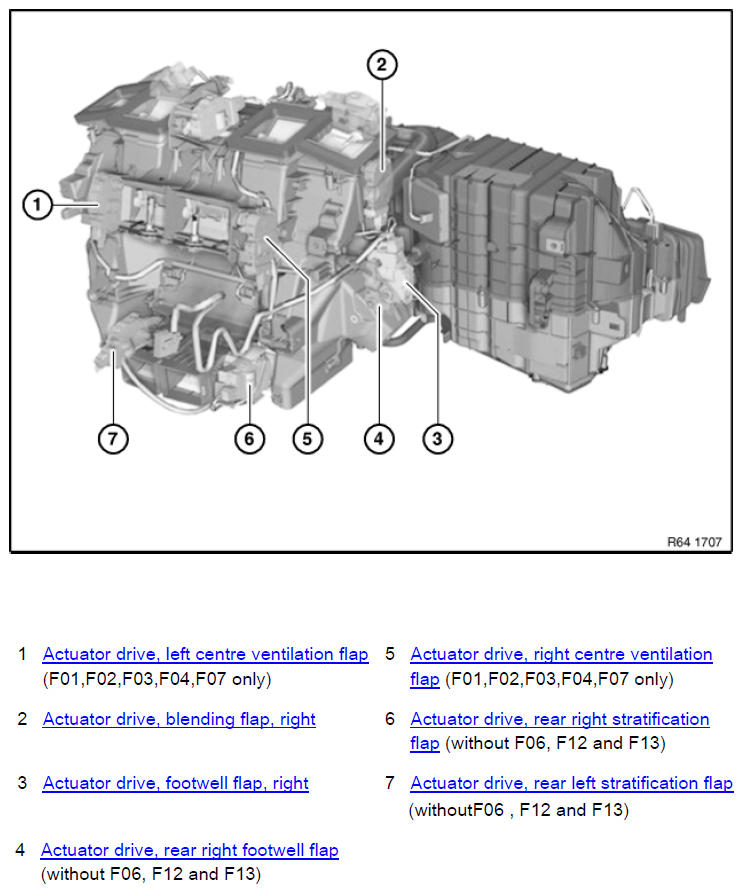

Fig 2: Overview Of Actuator Drives On Heater/Air Conditioner (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The High equipment specification heater/air conditioner is pictured!
