35 11 000 Removing and installing (replacing) complete bearing support for foot pedal

IMPORTANT: After completion of work, carry out function check.

Necessary preliminary work:

Release screws (1).

Remove control units from holder (2). Plugs remain connected.

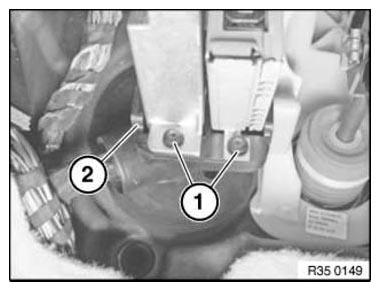

Fig 1: Identifying Control Unit Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Installation note:

Replace self-locking nut.

Tightening torque 35 11 2AZ .

Remove bearing support (2).

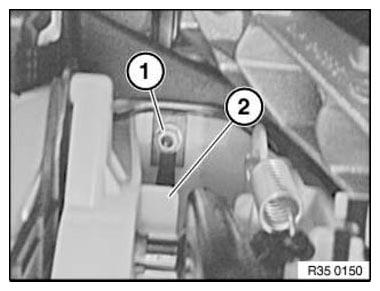

Fig 2: Identifying Foot Pedal Bearing Support And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Disconnect plug connection (2).

Replacement:

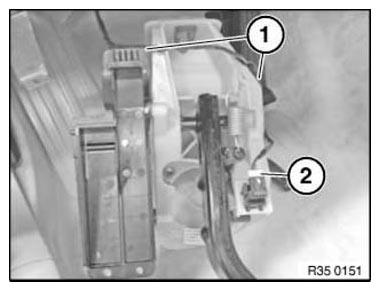

Fig 3: Identifying Foot Pedal Bearing Support Line And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
