35 21 041 Replacing spring for brake pedal

Necessary preliminary tasks:

Disconnect return spring (1).

NOTE: Check grommet (2) for damage, replace if necessary.

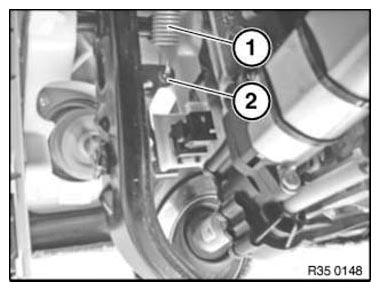

Fig 1: Identifying Brake Pedal Return Spring And Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
