35 40 001 Removing and installing or replacing accelerator pedal module

Take off cap.

Release screw.

Pull accelerator pedal module upwards out of fixture.

Installation note:

Tightening torque 35 40 1AZ .

Fig 1: Removing Accelerator Pedal Module

Courtesy of BMW OF NORTH AMERICA, INC.

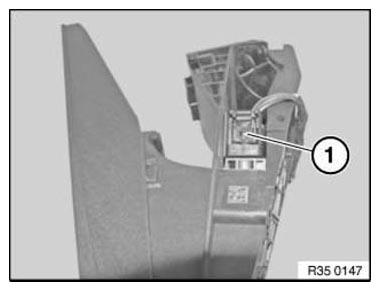

Pull off connector (1).

Remove accelerator pedal module.

Fig 2: Identifying Accelerator Pedal Module Connector

Courtesy of BMW OF NORTH AMERICA, INC.
