51 11 773 Replacing front lower left or right deformation element

Necessary preliminary tasks:

Partially detach FRONT ENGINE UNDERCOVER and remove screw (1) from bottom cover.

Fig 1: Identifying Bottom Cover Screw

Courtesy of BMW OF NORTH AMERICA, INC.

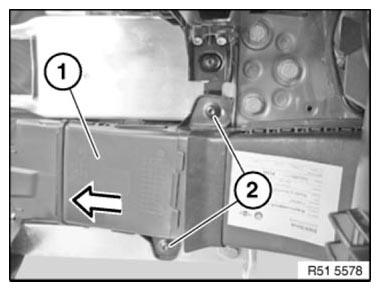

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on vertical connection (2).

Tightening torque 51 11 2AZ .

Fig 3: Identifying Vertical Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) on front axle support adapter plate (2).

Tightening torque 51 11 6AZ .

Remove deformation element (3).

Fig 4: Identifying Front Axle Support Adapter Plate, Deformation Element And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
