00-9120 Torque angle measuring dial

0490504 009120 Torque angle measuring dial Minimum set: Mechanical tools MW

NOTE: For torsion angle adjustment of cylinder head bolts (all engines) And front axle support reinforcement plate E46 [Released]

Storage Location

A5

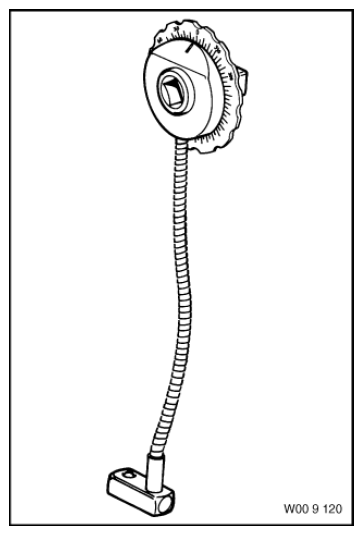

Fig 1: Identifying Torque Angle Measuring Dial (0490504)
G08489616Courtesy of BMW OF NORTH AMERICA, INC.
