11-9890 Gauge

0496359 119890 Gauge MW

NOTE: For fixing the camshaft in place when adjusting the valve timing. [Released]

Storage Location

C54

C53

SI number

01 06 08 (437)

Consisting of:

5 = 0496383 Adapter
NOTE: (Adapter N74) [released]

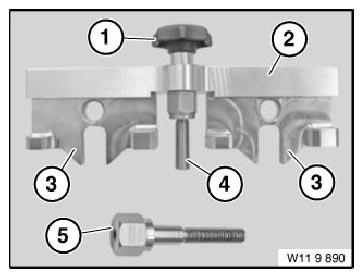

Fig 1: Identifying Gauge (0496359)
Courtesy of BMW OF NORTH AMERICA, INC.
4 = 0496382 Adapter
NOTE: (Adapter N63) [released]
3 = 0496381 Gauge
NOTE: (Gauges) [released]
2 = 0496380 Bridge
NOTE: [Released]
1 = 0496379 Handle
NOTE: (Rotary handle) [released]
