Timing case cover, cylinders 5-8

Necessary preliminary work

• Remove both SOLENOID VALVES  on left side.

Release screws (1).

Tightening torque 11 14 3AZ .

Remove timing case cover (2).

Installation note:

Replace gasket.

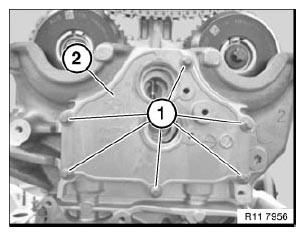

Fig 1: Identifying Timing Case Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
