72 11 092 Removing and installing or replacing rear left or right seat belts
Necessary preliminary tasks:
- Remove panel for rear window shelf . See 51 46 001 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR STORAGE SHELF or 51 46 018 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR STORAGE SHELF WITH ROLLER SUNBLIND
Removing left or right automatic reel:

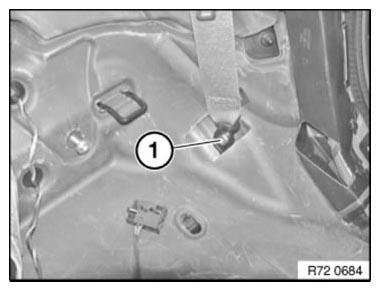

Release screw (1).
Tightening torque 72 11 21AZ .
Installation:
End fitting is coded against incorrect assembly.

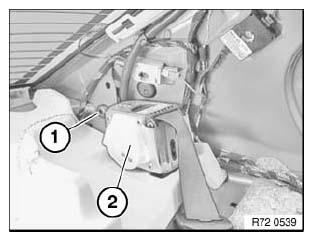

Release screw (1).
Tightening torque 72 11 20AZ .
Remove automatic reel (2) with anchor fitting.
Installation:
Pay attention to coding.

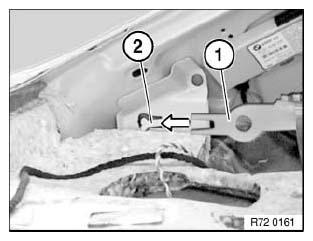

Push inertia reel unit (1) onto body lug (2).
