12 14 526 Replacing pulse generator on right inlet camshaft (N63)

(cylinder bank 1 to 4)

Necessary preliminary tasks:

• Read out fault memory of DME control unit; if necessary, work through test schedules
• Switch off ignition
• Remove right INTAKE FILTER HOUSING

Unlock plug (1) and remove.

Release screw (2).

Tightening torque 13 62 3AZ .

Remove pulse generator (3).

Installation:

Replace sealing ring and coat with anti-seize agent.

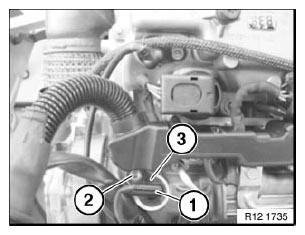

Fig 1: Identifying Pulse Generator, Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
