52 17 390 Removing and installing/replacing front left or right head restraint (comfort)

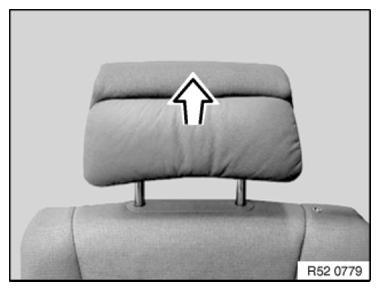

Move headrest up as far as possible.
Pull out forcefully.
Installation:
Position adjustment drive briefly before upper stop.
Press in head restraint until it clicks audibly into place (on right and left).
Courtesy of BMW OF NORTH AMERICA, INC.
