51 34 420 Removing and installing/replacing trim on window frame of rear door (front), left or right

Necessary preliminary tasks:

Detach rubber seal (1) and rubber guide (2) from trim.

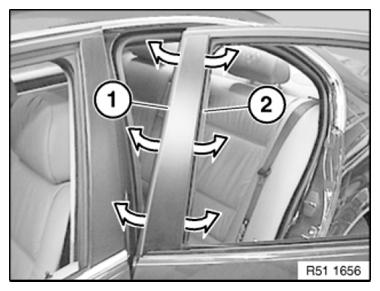

Fig 1: Disconnecting Rubber Seal And Rubber Guide From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Carefully detach trim (2) towards front/top.

Installation:

Moisten rubber window seal prior to fitting with water.

Fitted foam pieces must not be damaged when trim (2) is pushed in.

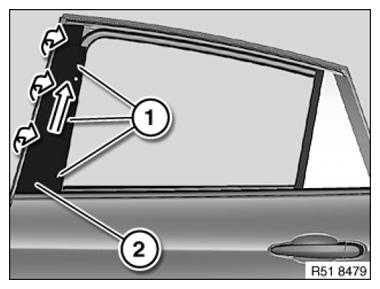

Fig 2: Disconnecting Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty plastic nuts (1).

Make sure rubber window seal is correctly seated.

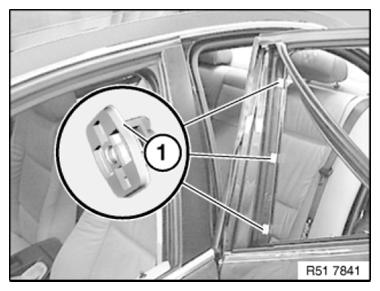

Fig 3: Identifying Plastic Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
