64 11 395 Removing and installing control panel for rear cabin A/C system

Necessary preliminary tasks:

• Remove REAR CENTER CONSOLE TRIM

Unlock latch mechanisms in direction of arrow.

Remove control panel (1) towards front.

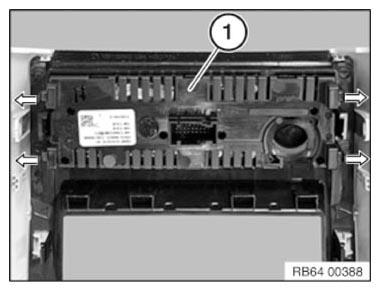

Fig 1: Identifying Control Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Carry out VEHICLE PROGRAMMING/ENCODING
