65 13 090 Removing and installing/replacing speaker (midrange speaker in rear side trim panel)

Special tools required:

• 00 9 460

Necessary preliminary tasks:

• Remove rear side trim panel. See 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

Release screws.

Tightening torque 65 13 3AZ .

Installation note:

To tighten screws, use special tool 00 9 460 .

Speaker (1) is encoded to prevent incorrect installation.

Remove speaker (1) from rear side trim panel (2) in direction of arrow.

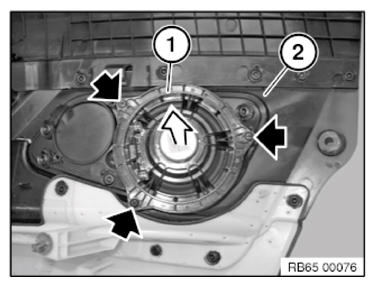

Fig 1: Removing Speaker From Rear Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
