65 13 080 Removing and installing/replacing speaker (tweeter in rear side trim panel)

Special tools required:

• 00 9 460

Necessary preliminary tasks:

• Remove rear side trim panel. See 51 43 002 REMOVING AND INSTALLING REAR LEFT OR RIGHT SIDE TRIM PANEL .

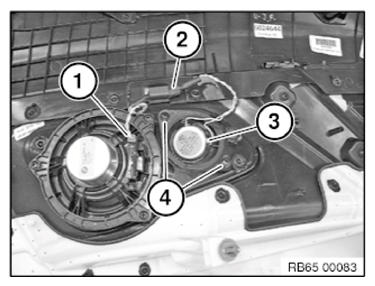

Disconnect plug connection (1).

Remove resistor (2) from holder.

Release screws (4).

Tightening torque 65 13 4AZ .

Remove speaker (3) from door trim panel.

Installation note:

To tighten screws, use special tool 00 9 460 .

Speaker (3) is encoded to prevent incorrect installation.
