11 65 714 Removing and installing/renewing electric changeover valve on exhaust turbocharger, right (N63)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary work:

Release screws (1).

Remove electric changeover valve (2).

Installation note:

Replace O-ring.

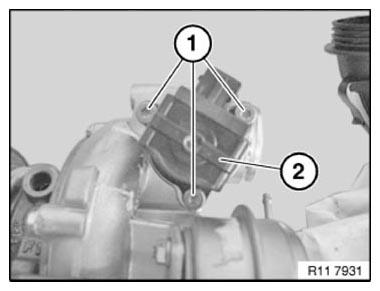

Fig 1: Identifying Electric Changeover Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Follow diagnosis instruction.
