16 14 500 Removing and installing or replacing control unit for electric fuel pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).

Necessary preliminary work:

Remove BACKREST SIDE SECTION , right rear seat.

NOTE: Vehicles with N13 motor have a DME control unit with integrated electric fuel pump control unit.

Disconnect plug connection (1).

Release nuts (2) and remove control unit (3).

Installation note:

Tightening torque: 16 14 1AZ .

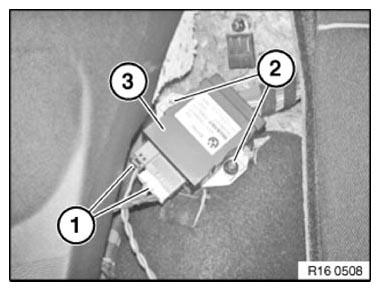

Fig 1: Identifying Control Unit Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/encoding.
