33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR WHEEL .

Release nuts (1); if necessary, grip at inner Torx socket.

Tightening torque 33 55 2AZ .

Remove anti-roll bar link (2).

Installation note:

Replace self-locking nuts.

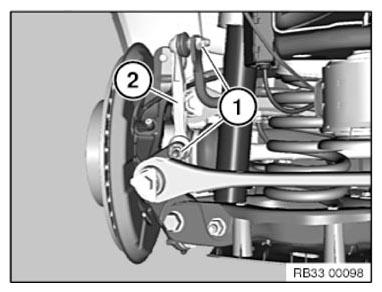

Fig 1: Identifying Anti-Roll Bar Link And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
