33 52 010 Removing and installing rear left or right shock absorber
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may tilt off vehicle hoist if the workshop jack is incorrectly handled.
When supporting components, make sure that:
When supporting components, make sure that:
- the vehicle can no longer be raised or lowered
- the vehicle does not lift off the locating plates on the vehicle hoist.
Installation note:
- All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
- Retaining elements on chassis and suspension and steering parts must be replaced.
Necessary preliminary tasks:
- Remove REAR WHEEL .
- Remove CAMBER ARM COVER .

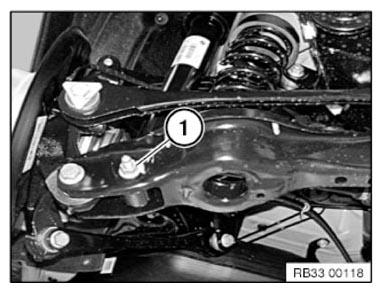

Support wheel carrier with workshop jack.
Slacken nut (1).
Tightening torque 33 52 3AZ
Lift wheel carrier with workshop jack to the point where the screw can be removed.
Slowly lower workshop jack until wheel carrier is suspended.
Remove workshop jack from under vehicle.
Installation note:
Replace screw and nut.
Note direction of insertion of screw.
Tighten down screw connection in NORMAL POSITION .

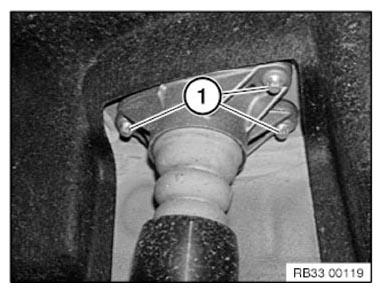

Release screws (1) on support bearing.
Tightening torque 33 52 1AZ .

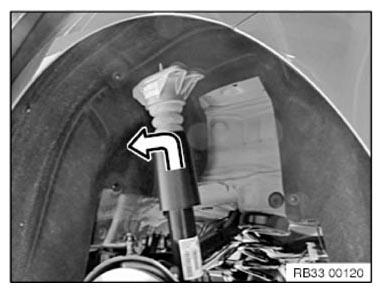

Press shock absorber together and remove upward from wheel arch.
Installation note:
Check protective cap (1) and sealing washer (2) for damage and renew if necessary.
