33 17 005 Replacing the rubber mounts for the rear axle final drive suspension at rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 0 031
33 0 032
33 0 035
33 0 036
33 5 105
33 4 275
33 5 200

Do not press the rubber mount in and out more than once.

Necessary preliminary tasks:

Remove REAR AXLE FINAL DRIVE .
Lower REAR AXLE SUPPORT .

IMPORTANT: Determine the installation position of the bearing before pressing it out to ensure a correct installation of the rear axle differential.

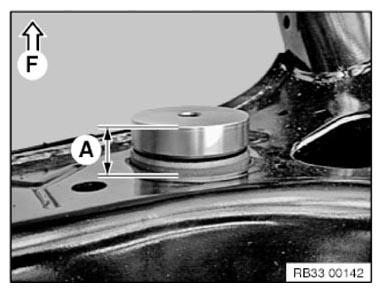

Fig 1: Removing Rear Axle Final Drive Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

For this purpose, attach special tool 33 0 031 from the front. Measure the protrusion (A) and notate.

Withdrawing rubber mount:

Pull out rubber mount with special tools 33 0 031, 33 0 032, 33 0 035 and 33 0 036.

NOTE: Ensure that the 33 0 032 special tool is correctly seated on the rear axle support.
Counter support with spindle 33 0 035.
Use ratchet ring wrench 33 5 105.

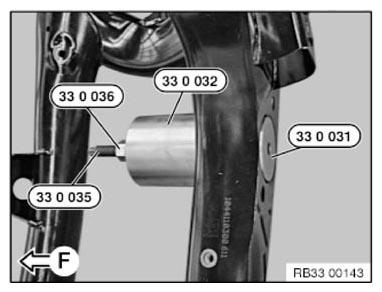

Fig 2: Pulling Out Rubber Mount With Special Tool (33 0 031)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

IMPORTANT: Align rubber mount horizontally by way of elongated hole (1).

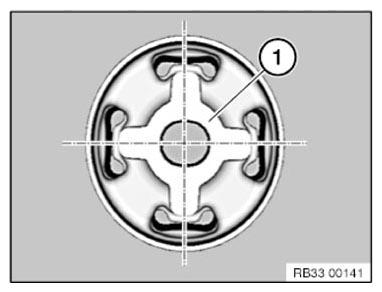

Fig 3: Identifying Rubber Mount Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in the rubber mounts (1) with special tools 33 0 03133 0 035, 33 0 036 and 33 4 275 to previously determined protrusion (A).

NOTE: Make sure that the special tools 33 0 031 and 33 4 275 are set up correctly.
Counter support with spindle 33 0 035.
Use ratchet ring spanner 33 5 105.

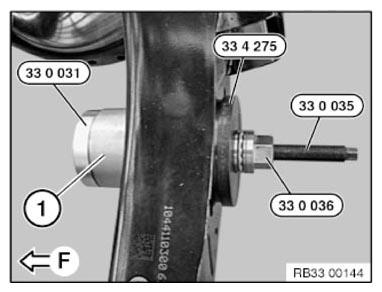

Fig 4: Inserting Rubber Mounts With Special Tool (33 0 031)

Courtesy of BMW OF NORTH AMERICA, INC.

Assembly sequence:

Insert the rear axle final drive into the rear axle support using the workshop jack and special tool 33 5 200.
Insert screws (1) (do not tighten).
Insert bolt from rear and replace nut (2) (do not tighten down).
Release tensioning strap and lower special tool 33 5 200 and move away.
Tighten down screws (1).
Tightening torque 33 17 1AZ .
Tighten nut (2).
Tightening torque 33 17 2AZ .

Fig 5: Identifying Screws And Nut
Courtesy of BMW OF NORTH AMERICA, INC.
