17 21 500 Rinse transmission oil cooler with lines (automatic transmission) (GA8HP45Z, GA8HP50Z, GA8HP70Z, GA8HP75Z, GA8HP90Z)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: Carry out the operations listed when:
Install a new or exchange transmission.

Procedure:

Automatic transmission removed.

Connect appropriate adapters (see description below) to oil lines exiting from automatic transmission.

Use quick-release coupling to connecting line 17 2 019 from oil dispenser unit.

Use quick-release coupling to drain line 17 2 018 .

Hold and direct open end of drain line into a suitable collecting vessel.

Using oil dispenser unit, flush approx. 1 liter of transmission fluid (refer to BMW Service OPERATING FLUIDS ) through oil lines and transmission oil cooler.

Reposition quick-release couplings.

Flush oil lines/transmission oil cooler in opposite direction with approx. 1 liter of transmission fluid (refer to BMW Service OPERATING FLUIDS ).

Disconnect quick-release couplings.

Remove adapter.

Recycling:

Never use flushing oil.

Dispose of flushing oil according to country-specific waste disposal regulations.

Press hydraulic lines (1) into adapters (2).

Slide clamping bracket (3) into guides and secure with screw (4).

Fig 1: Identifying Hydraulic Lines, Adapters, Clamping Bar And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

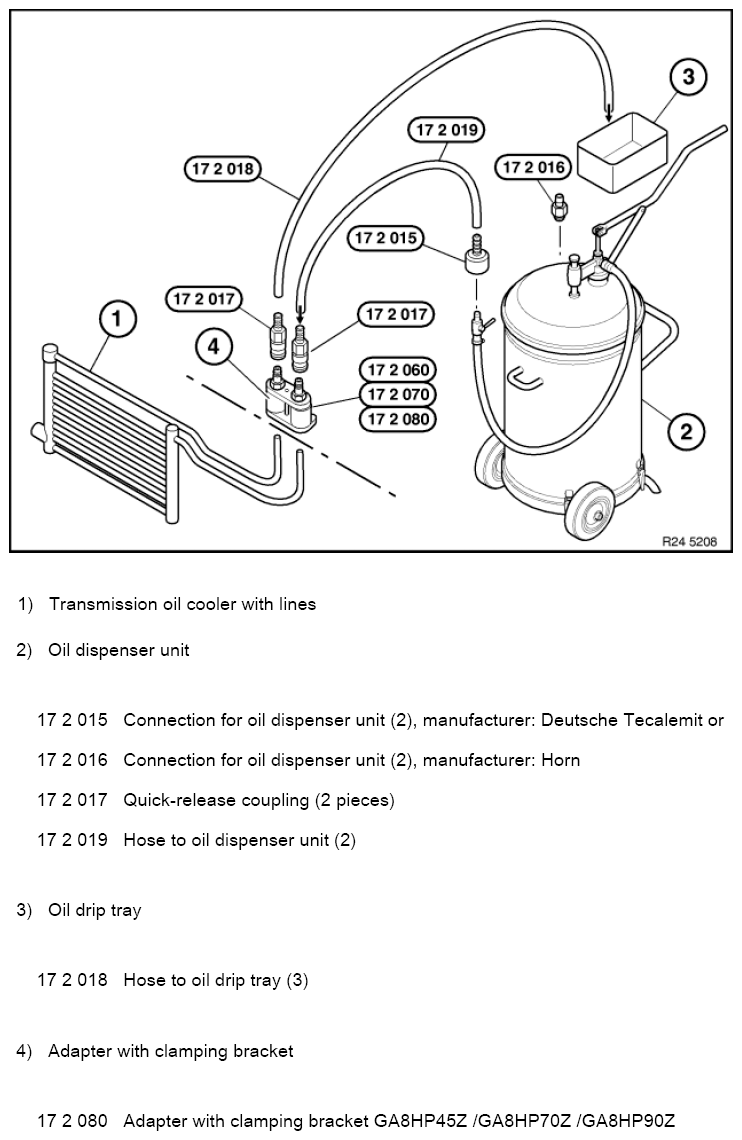

Arrangement of flushing device for transmission GA8HP45Z, GA8HP50, GA8HP70Z, GA8HP75Z, GA8HP90Z
