35 21 041 Replacing spring for brake pedal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL MECHANISM .

Disconnect return spring (1).

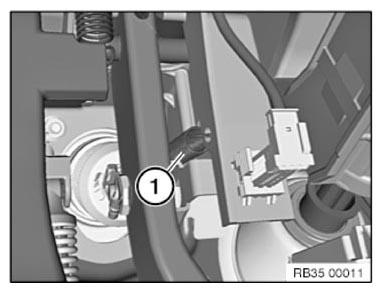

Fig 1: Identifying Brake Pedal Return Spring

Courtesy of BMW OF NORTH AMERICA, INC.
