52 15 050 Remove or install left or right thigh support from/on the front seat (sport/manual)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unlock and move thigh support (1) as far forward as possible.

Lever out the welt (3) from the seat cover (2) from the thigh support (1).

Fig 1: Removing Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Actuator, Centering Element And End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Do not completely extend the thigh support to the end stop.

Keep Actuation (1) pressed to unlock the centering (2).

Carefully raise the end stop (3) for the thigh support with a screwdriver and pull the thigh support toward the front out of the guide rails at the same time.

Fig 3: Removing End Stop Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

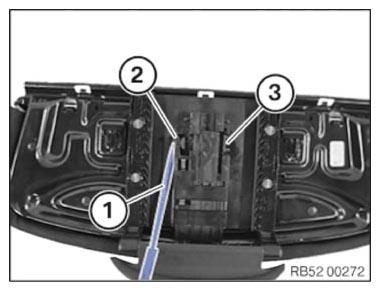

View of thigh support mechanism when removed:

Screwdriver for unlocking the end stop
End stop for thigh support
Locking mechanism for the thigh support

View of seat frame mechanism:

3. Guide rail on seat with depth retainer
4. Guide rail on seat with end stop

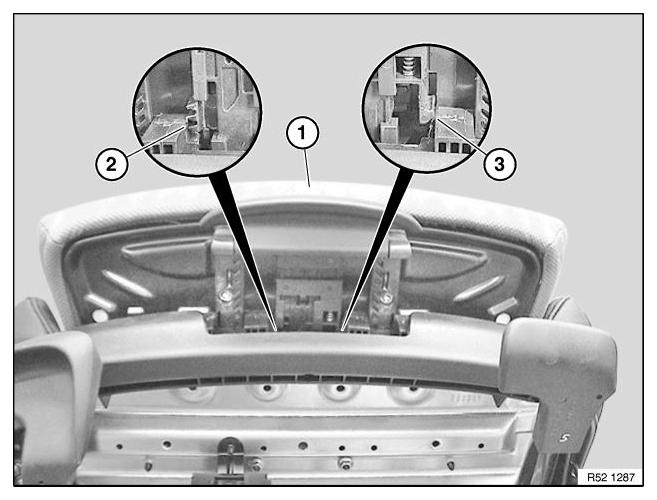

Fig 4: Guide Rails On Seat With Depth Arrester And End Stop
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

NOTE: Check guide rails (2) and adjusting mechanism (3) for damage.

Fig 5: Plug Connection, Guide Rail With Adjustment Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
