65 13 080 Removing and installing/replacing speaker (tweeter in rear door)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Unclip resistor (2).

Unlock retaining lugs.

Remove tweeter (1).

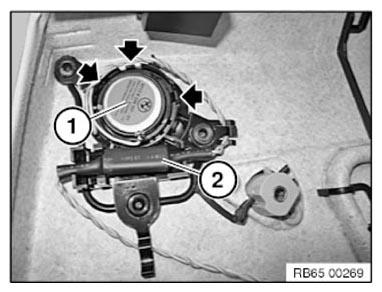

Fig 1: Identifying Tweeter And Resistor
G10099036Courtesy of BMW OF NORTH AMERICA, INC.
