64 22 125 Removing and installing (replacing) right fresh air grille

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT

Release screws (1).

Remove fresh air grille (2) in direction of arrow from dashboard (3).

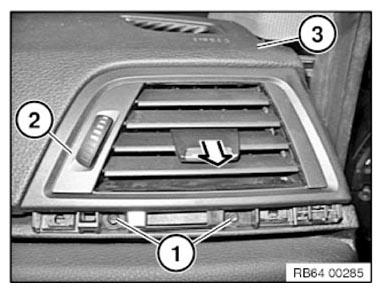

Fig 1: Removing Fresh Air Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps marked with arrows must not be bent or damaged, and must be renewed if they are.

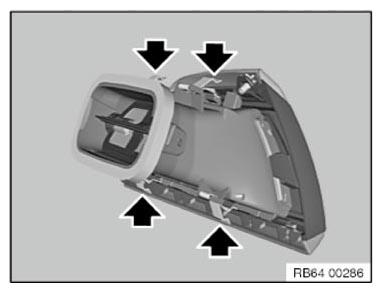

Fig 2: Inspecting Clamps For Bent And Damage

Courtesy of BMW OF NORTH AMERICA, INC.
