34 32 980 Replacing rear left or right brake hose

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Read and comply with GENERAL INFORMATION .
Remove WHEEL .

After completing repair work: BLEED BRAKE SYSTEM .

Press brake pedal down to floor and secure with pedal support.

NOTE: The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

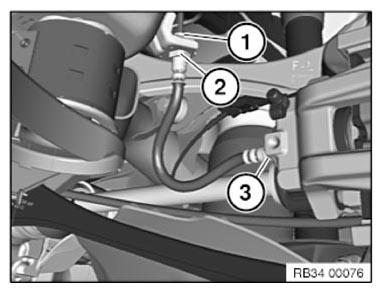

Fig 1: Locating Brake Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

Disconnect brake hose from brake line (1).

Installation note:

Tightening torque: 34 32 1AZ .

Fig 2: Identifying Brake Line And Caliper

Courtesy of BMW OF NORTH AMERICA, INC.

Detach brake hose from brake caliper (3).

Installation note:

Tightening torque: 34 32 3AZ .

Installation note:

First tighten brake hose on brake caliper.

Insert brake hose in bracket and screw onto brake pipe.
