63 21 030 Removing and installing/replacing left socket housing for rear light (on side wall)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove REAR LIGHT

Release catches (1).

Remove socket housing (2) from rear light (3).

Installation note:

Catches (1) must not be damaged or missing.

Make sure socket housing (2) is correctly seated on rear light (3).

Fig 1: Identifying Rear Light, Socket Housing And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seal (3) on socket housing (2) must not be missing or damaged.

Replacement:

Carefully press down bulb (1) into socket housing (2), turn in direction of arrow and remove from socket housing (2).

Note BULB TYPE .

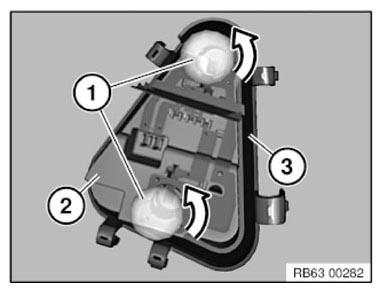

Fig 2: Turning Bulb Into Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
