54 10 050 Removing and installing/replacing mechanism for floating headlining

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Removing BOTH FLOATING HEADLININGS FOR GLASS SLIDE/TILT SUNROOF

IMPORTANT: Drive carriage of drive cable (1) can possibly unhook in most rear (closed) position (turn towards the top)!
Before closing manually, press down drive carriage of drive cable (1) if required, and guide it into guide rail (2).

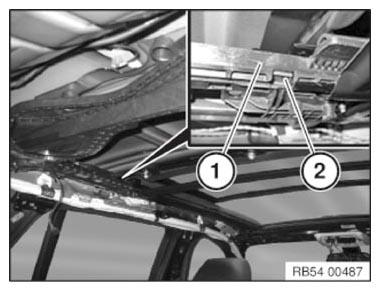

Fig 1: Pressing Down Drive Carriage Of Drive Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Manually move mechanics for rear floating headlining back until slide rail for rear floating headlining (1) is fully in panoramic roof frame.

Unhook slide rail of rear floating headlining (1) from slide rail of front floating headlining (2) and remove.

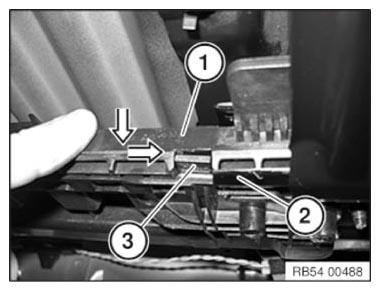

Fig 2: Identifying Front And Rear Floating Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Manually move mechanics for floating headlining further back until slide rail for front floating headlining (1) is fully in panoramic roof frame.

Unhook slide rail of front floating headlining (1) from drive cable (2) and remove.

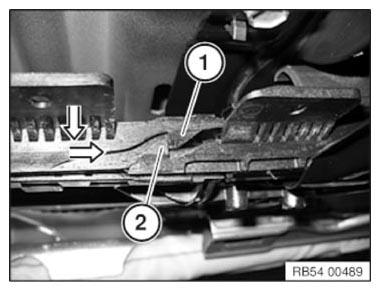

Fig 3: Identifying Front Floating Headlining And Drive Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

The operations are applicable for both the left and right sides. Install both slide rails at the same time.

A helper is required for installation. One person must position the slide rails, the second person must move the mechanics.

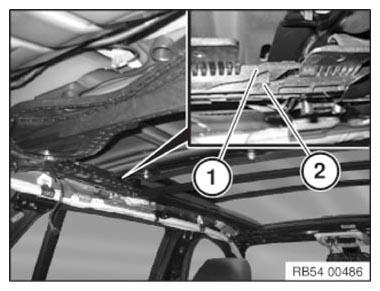

Fig 4: Attaching Slide Rail Of Front Floating Headlining In Drive Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Attach slide rail of front floating headlining (1) in drive cable (3).

Position slide rail of front floating headlining (1) in guide rail of panoramic roof frame (2).

IMPORTANT: Slide rail of front floating headlining (1) must be fitted correctly in guide rail of panoramic roof frame (2).

Push slide rail of front floating headlining (1) against panoramic roof frame and move forwards into guide rail (2).

NOTE: Move slide rail of front floating headlining (1) forwards until slide rail of rear floating headlining can be installed.

Installation:

Installation note:

The operations are applicable for both the left and right sides. Install both slide rails at the same time.

A helper is required for installation. One person must position the slide rails, the second person must move the mechanics.

Fig 5: Identifying Front And Rear Floating Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Attach slide rail of rear floating headlining (1) in slide rail of front floating headlining (2).

Position slide rail of rear floating headlining (1) in guide rail of panoramic roof frame.

IMPORTANT: Slide rail of rear floating headlining (1) must be fitted correctly in slide rail of front floating headlining (2).
Slide rail of rear floating headlining (1) must be fitted correctly in guide rail of panoramic roof frame.
Push slide rail of rear floating headlining (1) against panoramic roof frame and move forwards into guide rail.
