54 13 060 Removing and installing/replacing floating headlining for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove WATER CHANNEL
Removal:
Completely close floating headlining.

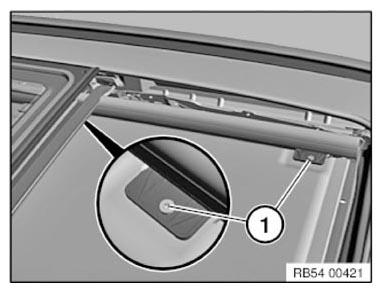

Release left and right screws (1).
NOTE:
A small reversible ratchet with low overall height (approx. 30 mm inc. Torx bit) is required for unscrewing the rear bolts (1).
Removal:
NOTE:
Removal of the floating headlining is shown with the panorama glass roof removed.

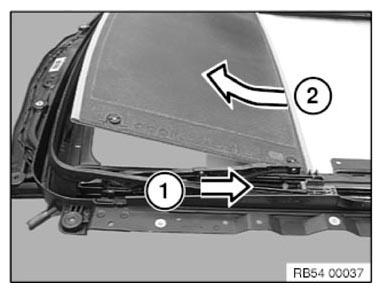

- Hold floating headlining while at the same time moving the floating headlining mechanism towards the rear.NOTE: Risk of damage! Move floating headliner mechanism back just far enough to expose floating headliner at front. No automatic move!
- Feed out floating headlining towards front.
Installation note:

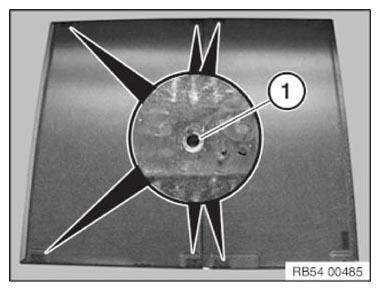

Prior to installation of a new floating headlining, clean the threads by screwing a screw in and out of every screw hole (1).
Installation note:
Insert the floating headlining and move the front mechanism to the front (close) until the floating headlining can be screwed. in.
Installation:
- Loosely screw in screws (1) on left and right. Front floating headlining must still be freely moveable!
- Completely open and then close floating headlining (stacked position). Floating headlining sets itself up in mechanism by this.
- Tighten screws (1) on left and right.
Tightening torque 54 12 04AZ .
NOTE:
A small reversible ratchet with low overall height (approx. 30 mm inc. Torx bit) is required for unscrewing the rear bolts (1).
After installation of the glass slide/tilt sunroof panel:
Carry out INITIALIZATION .
