54 13 007 Adjusting rear glass slide/tilt sunroof panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Necessary preliminary tasks:

Remove HEADLINING
Close glass slide/tilt sunroof completely

If the glass slide/tilt sunroof is outside the adjustment tolerances, adjust as follows:

Release screw (1).

Tightening torque 51 47 03AZ .

Remove holder (2) for load area net.

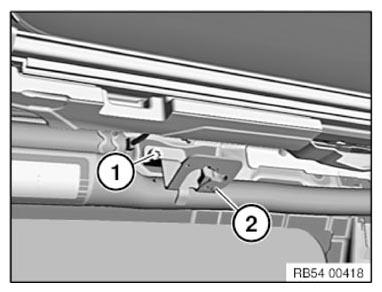

Fig 1: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

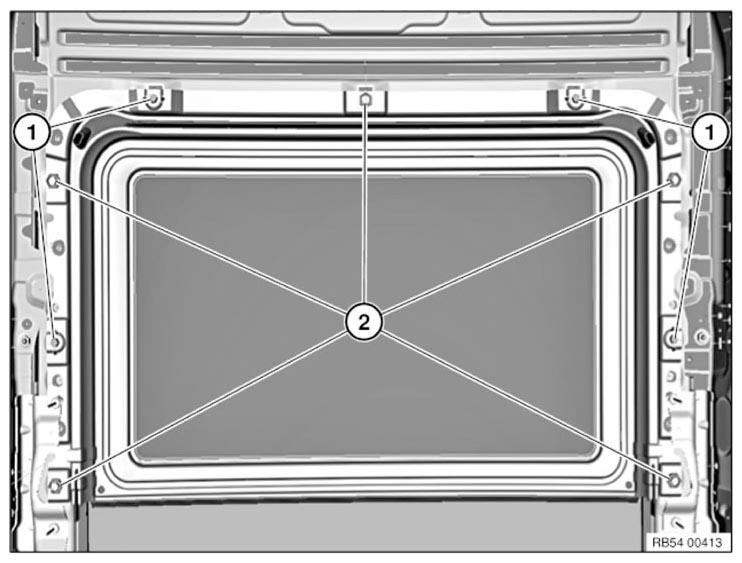

Fig 2: Identifying Active And Passive Components Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Build date up to 09/2012:

Slacken screws (1) from passive components.
Slacken screws (2) from active components.

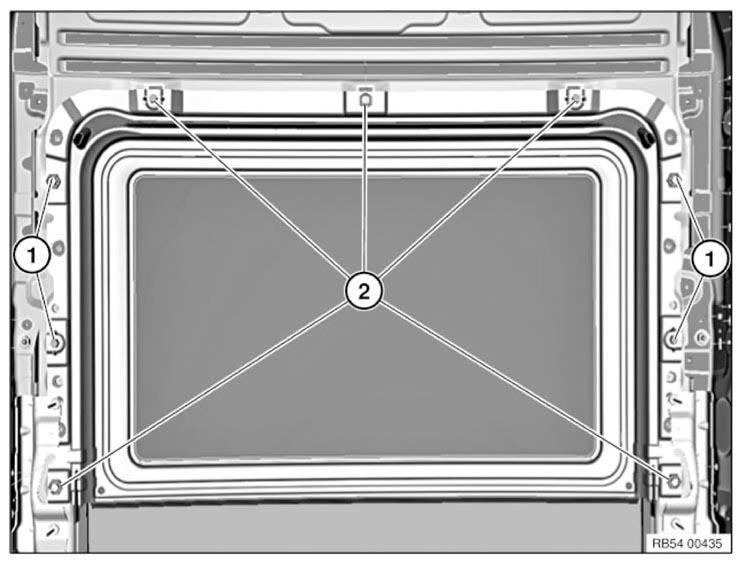

Fig 3: Identifying Active And Passive Components Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Version after 09/2012:

Slacken screws (1) from passive components.
Slacken screws (2) from active components.

Screw passive components (1) back in to the limit position.

NOTE: Passive elements (1) must be freely movable.
If the retaining tabs are defective, the passive components must be replaced.

Fig 4: Identifying Passive Components

Courtesy of BMW OF NORTH AMERICA, INC.

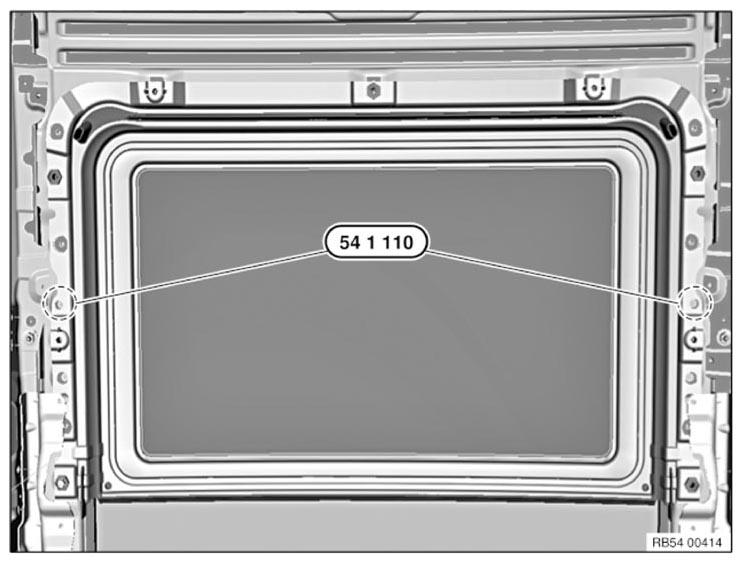

Fig 5: Aligning Glass Slide/Tilt Sunroof Panel Using Special Tool (54 1 110)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjustment sequence:

Lightly tighten screws of active elements; it must still be possible to move the glass slide/tilt sunroof panel.
Align glass slide/tilt sunroof panel using special tool 54 1 110 .
Tighten screws of active components.
Tightening torque 54 12 05AZ .
Check height setting dimension on glass slide/tilt sunroof panel at rear.
- Rear edge of front glass slide/tilt sunroof panel 0.9 to mm above rear glass slide/tilt sunroof panel
- Rear edge of glass slide/tilt sunroof panel 0.9 to mm above roof edge
- Check height of glass slide/tilt sunroof panel in relation to body with special tool 00 9 315 .
Slightly loosen screws of active elements in the adjustable area.
Adjust the height using the height adjustment element (hexagon head of active element).
Notes:
- One turn corresponds to approx. 1 mm.
- Turn clockwise: glass slide/tilt sunroof panel is adjusted downward.
- Turn anticlockwise: glass slide/tilt sunroof panel is adjusted upward.
Height setting dimensions:
- Rear edge of front glass slide/tilt sunroof panel 0.9 to mm above rear glass slide/tilt sunroof panel
- Rear edge of glass slide/tilt sunroof panel 0.9 to mm above roof edge
- Check height of glass slide/tilt sunroof panel in relation to body with special tool 00 9 315 .
Tighten screws of active components.
Tightening torque 54 12 05AZ .
Tighten screws (2) of passive elements.
Tightening torque 54 12 05AZ .
